Rave Generation: Multiband Processor
Five-band compressor with drawn curves
Multiband Processor is modeled on the multiband compressor from Cubase SX and Nuendo. It splits your signal into up to five bands. You draw a compression curve for each band and set its level; the bands are then added back together through an output level and a soft clipper.
AMOUNT sets how much of the processing you hear, and ZERO LATENCY removes the delay for recording and live use.
Includes 10 presets.
AMOUNT sets how much of the processing you hear, and ZERO LATENCY removes the delay for recording and live use.
Includes 10 presets.
Features
- A Faithful RecreationChecked against the multiband compressor from Cubase SX and Nuendo, sample by sample.

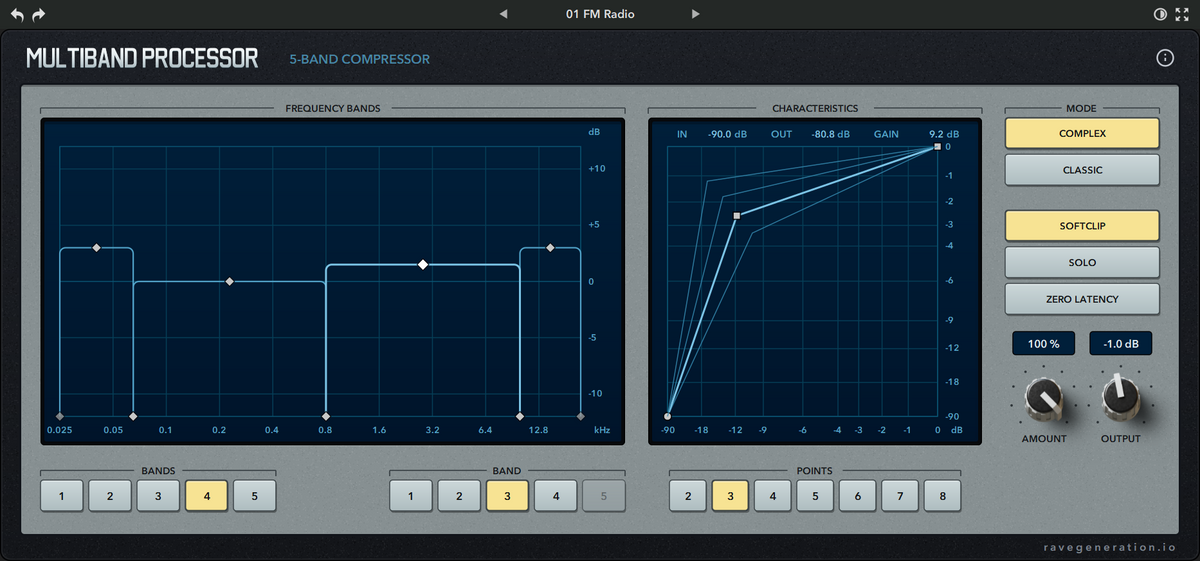

- Up To Five BandsSplit the signal at up to four points between 20 Hz and 12 kHz by dragging the crossovers in the Frequency Bands display.
- Draw Each CurveEach band gets its own curve of up to 8 points: lift the quiet parts, push the loud parts down, or both.
- Band LevelsTurn each band up or down by up to 12 dB before its curve.
- Classic Or ComplexClassic uses one fast compressor stage, Complex a slower stage followed by a fast one.
- SoloHear the selected band on its own.
- SoftClipRounds off peaks so the output never goes above 0 dBFS.
- AmountSets how much of the curves, band levels and output you hear, from 100% down to 0%, where the signal passes unchanged.
- Zero LatencyRemoves the delay for recording and live use; the sound stays close to the original.
- Hint BarHovering over any control shows what it does at the bottom of the window. The (i) icon turns it on and off.
